#3333

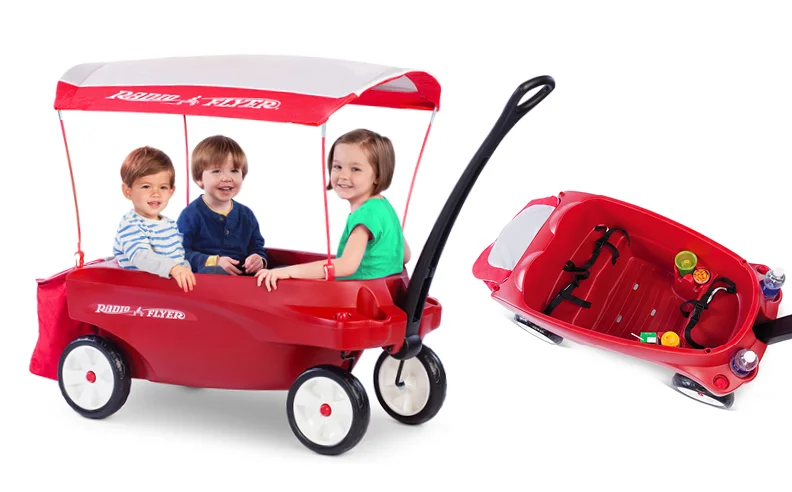

The #3333 Triple Play Deluxe Wagon is a collaborative project completed with the advanced concepts team at Radio Flyer. It is Radio Flyer's largest wagon to date.

The #3333 Triple Play Deluxe Wagon is a collaborative project completed with the advanced concepts team at Radio Flyer. It is Radio Flyer's largest wagon to date.

The objective is to safely and comfortably seat 3 children in a wagon.

The objective is to safely and comfortably seat 3 children in a wagon.

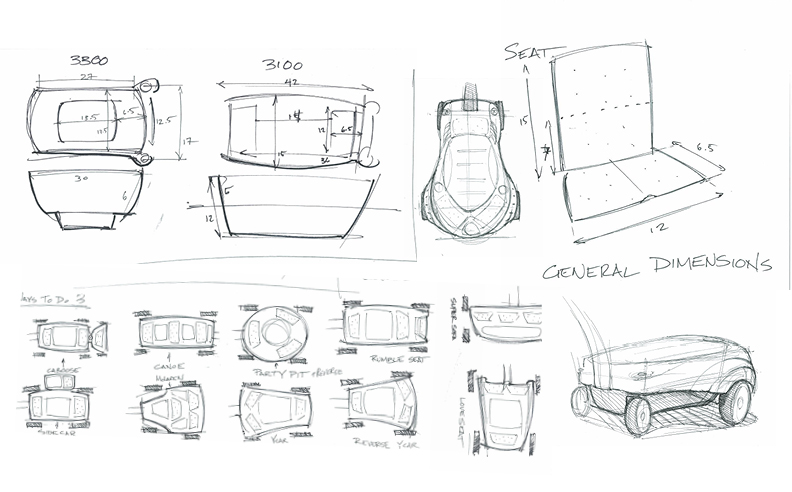

Initial sketches to determine seating requirements and configuration proportion.

Initial sketches to determine seating requirements and configuration proportion.

Many physical prototypes are built to test proposed features.

Many physical prototypes are built to test proposed features.

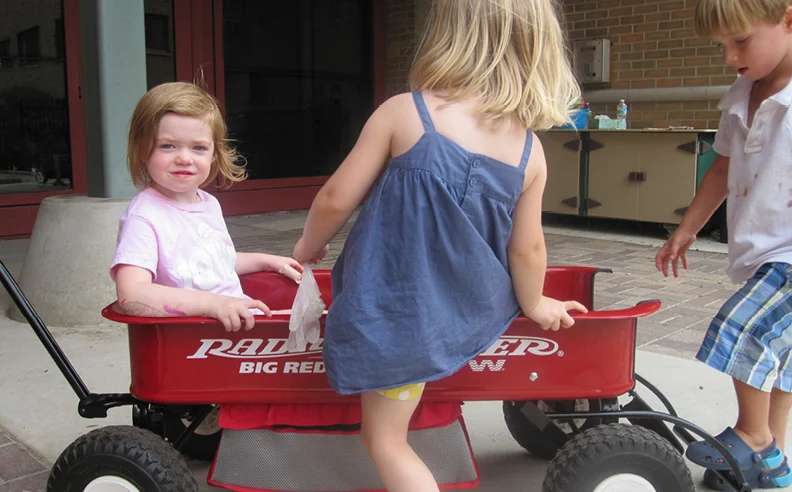

Prototypes are built with the highest degree of safety and then subject to child testing.

Prototypes are built with the highest degree of safety and then subject to child testing.

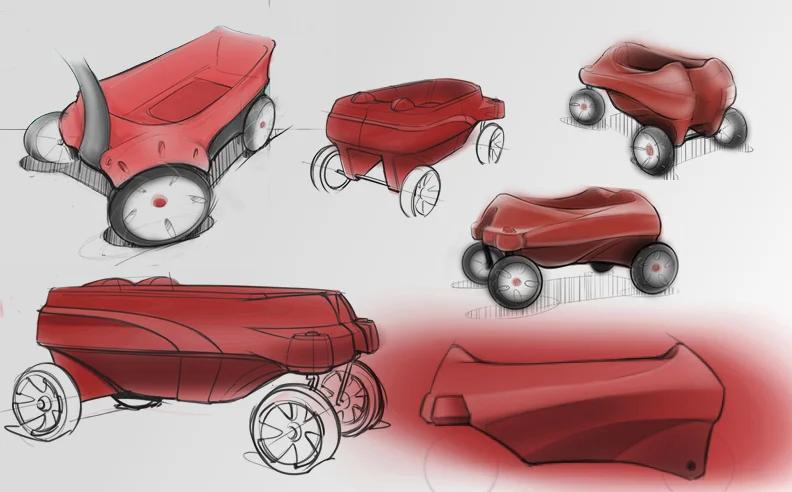

Refined sketches further develop the form in congruence with the brand language.

Refined sketches further develop the form in congruence with the brand language.

Considerations are given for a mass scale rotational molding process. Shown here six molds arranged on a 110" spider.

Considerations are given for a mass scale rotational molding process. Shown here six molds arranged on a 110" spider.

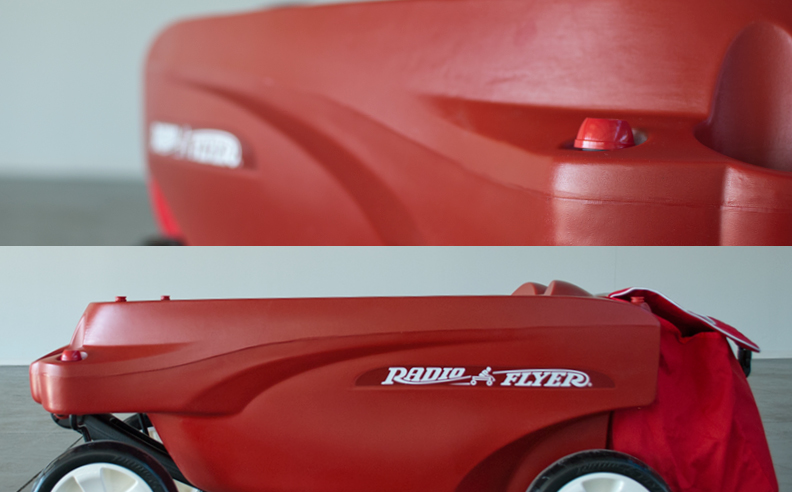

First round production parts are subject to surface and performance evaluations.

First round production parts are subject to surface and performance evaluations.
